Recently, a few members in our team decided to look into home automation and the inherent risks that come with having a “smart home”. Although IoT devices and their associated cloud infrastructure may pose a risk on it’s own, we decided to look into the very established and known open-source automation ecosystem known as Home Assistant.
As the idea of a smart home increases in popularity, so do the inherent risks, and often users are left asking themselves: How secure is this device? Where is my data going? Who else can see my data? Thankfully, software such as Home Assistant exists, with the goal of taking those smart devices offline, or at least away from the vendor managed cloud instances or required additional hardware bridges.
Home Assistant used to be targeted towards the more tech savvy, and those who wanted to tinker and really configure every detail of the devices they wanted to control within the household. However, as popularity increased, the suite of products has become much more user friendly and has built readily available images for all kinds of architectures, devices (Raspberry Pi) and OS’.
Although Home Assistant aims to bring devices offline and return power to the user, many users still aim to access their instances remotely, whether that be through a private VPN tunnel, or perhaps exposure to the internet. Some online research even suggests that there are over 130,000 publicly accessible instances (that we know of).
The potential impacts of a home network compromise can be disastrous. News surrounding the recent LastPass data breach revealed that attackers were able to compromise a developer account through a targeted attack against a service running on an employee’s personal home network. Given Home Assistant’s role in managing devices on a home network, it’s not unreasonable to imagine how a critical vulnerability in it may lead to a complete takeover of a home and give an attacker the ability to control cameras or listen in on private conversations. Furthermore, Home Assistant’s vast interconnectivity with third-party services means many users store sensitive credentials in plaintext on their Home Assistant machines – a compromise of these could lead to even more severe consequences. As such, security should be at the forefront of mind when developing or using any sort of system of this nature.
So without further ado, come with us on this journey to understanding the Home Assistant architecture, enumerating the attack surface and trawling for pre-authentication vulnerabilities within the code base.
The aim of this section is to give an architectural overview of Home Assistant to provide context about the different components which we’ll discuss in this post. The developers documentation already gives a great overview so we encourage giving that a read for some extra background.
Home Assistant can be installed in four different ways. These different installation types give users the ability to run Home Assistant according to their requirements and customise how much or how little is automatically managed.
- The recommended installation method is via the Home Assistant Operating System (HAOS), which is a fully fledged Linux based operating system that runs the various Home Assistant components in Docker containers. This is intended to be run on devices like a Raspberry Pi, or within a virtual machine.
- The standalone Home Assistant Container installation method is also recommended and provides a convenient way to run Home Assistant on a machine with Docker. This installation method does not come with the Supervisor component, so it misses out on a few features, namely add-ons.
- The Home Assistant Supervised installation involves manually installing the Supervisor component on a Linux system which gives the full Home Assistant experience while letting the user manage the operating system themself.
- Finally, the Home Assistant Core installation method is another manual installation in which the user runs the Home Assistant Core application directly with Python. As with the Home Assistant Container method, this does not come with the Supervisor component.
The three main components of a Home Assistant installation are the Home Assistant Core application, the Supervisor and the Operating System. All installations run at least the Core, while only the Supervised and Operating System installations run the Supervisor component. Since the Operating System component is only included in HAOS installations and because of its harder-to-reach attack surface, it was not an area of significant focus during our research. The other two components however, proved to be quite interesting to look at.
Home Assistant Core
Home Assistant Core is, as its name suggests, the core of a Home Assistant installation. It is a Python application whose source code can be found in the home-assistant/core repository where it is very actively developed. The Core is what an end user, IoT device or service interacts with. It even talks to the Supervisor to make it easy for a user to manage things like backups and add-ons from within the web user interface. The core of the Core however is actually quite minimal. Some of the most interesting functionality Home Assistant has to offer is provided through integrations.
Integrations are Python modules that enrich the Home Assistant experience by leveraging helper classes made available by the Core to perform all sorts of useful things. These kinds of things can range from simple tasks like downloading files and processing video and audio with FFmpeg to providing an interface for other integrations to expose HTTP endpoints and register WebSocket commands. Even the frontend web user interface is implemented as an integration. There’s also an integration that literally performs integration.
The Supervisor Component
The Supervisor component is a Python program that lives in the home-assistant/supervisor repository. Its responsibility is to manage various parts of the Home Assistant installation by doing things like actually running/updating Home Assistant Core, managing backups, managing add-ons and even updating the operating system (when running a HAOS installation).
It exposes a HTTP API which is how the Core communicates with it. In the default HAOS installation, this service is not exposed on the network, so it is not possible to access this API remotely or even from within the same LAN.
The Home Assistant developers documentation provides some great diagrams to summarise the overall architecture and an example of how different components interact with the Core:
Attack Surface Enumeration
Home Assistant is a big application with a lot of moving parts. Although we had spent some time understanding the architecture and how things fit together, we needed to narrow the focus down a bit to a reasonable subset of components and code to manually audit.
Before properly diving deep into testing and auditing, we noted a few things that we considered interesting from a security perspective:
- There is (somewhat) a concept of privilege separation between user accounts
- Devices can be automatically discovered and configured by Home Assistant
- A web application runs on port 8123 and makes extensive use of HTTP APIs and WebSockets
Differing user permissions within an application is always an interesting thing to look into as vulnerabilities which allow a user to elevate their privileges or otherwise do something they shouldn’t be permitted to do can often have severe consequences. Home Assistant has a concept of user levels – the first account created when you set up a Home Assistant instance is the owner, and the owner can create other administrator and user accounts. However, as of Home Assistant 2023.4.6 (the latest version at the time of writing), there is no functional difference between administrator and user accounts. User accounts are unable to view the settings page within the web application user interface, but otherwise has practically the same access as administrator users in API endpoints and as such can trivially escalate privileges to that of an administrator.
This is well documented in both the user documentation and developer documentation. Additionally, when creating a new user through the web application user interface, a message is included which makes note of this:

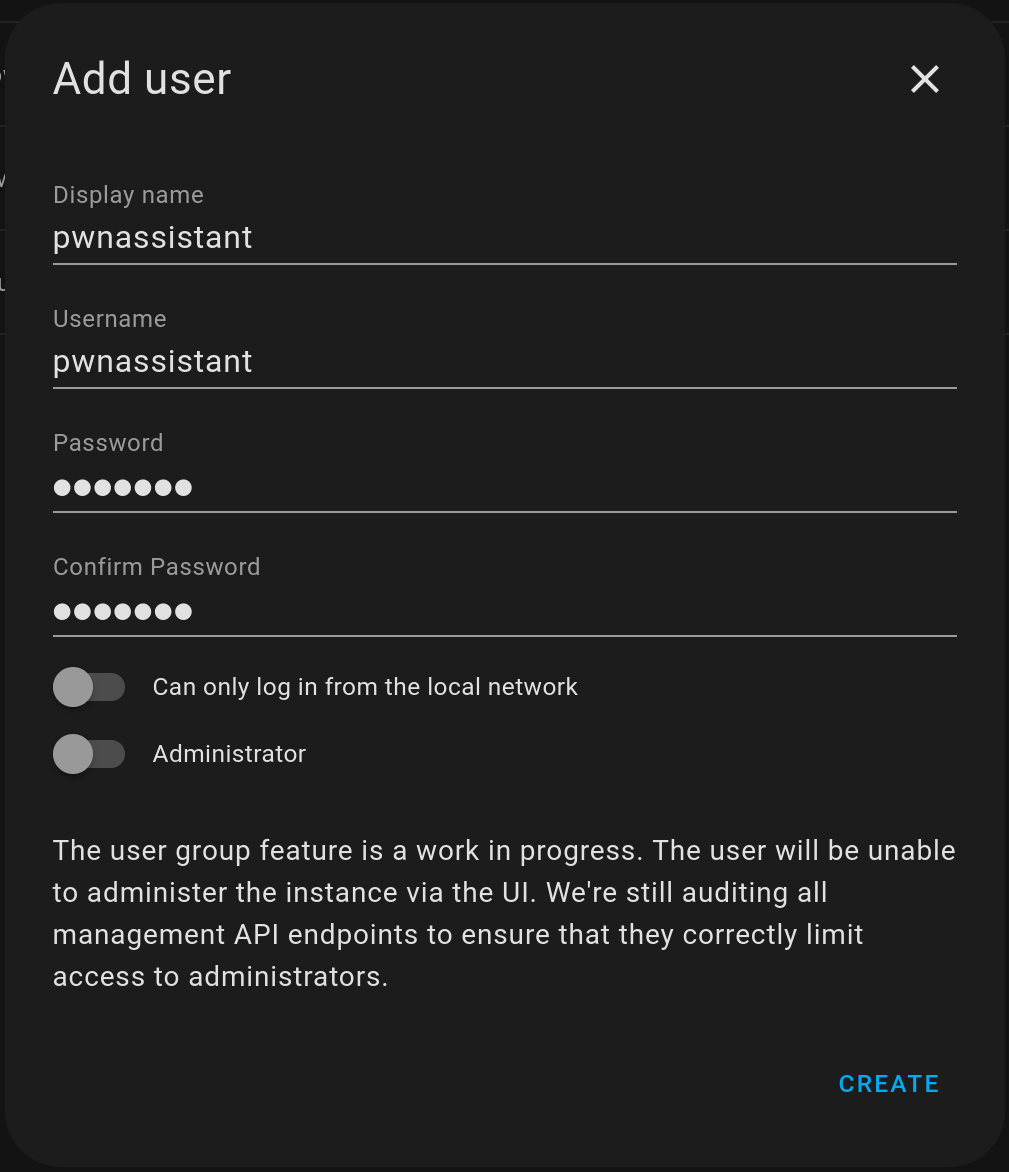

A developer blog post from 2019 highlights the work-in-progress status of the user permission system and how they plan to properly enforce the distinction between users and administrators. What this means for us is that the authenticated attack surface is still an interesting target, even if not immediately useful.
Local Attack Surface
Part of what makes Home Assistance so convenient is it’s ability to automatically discover and configure devices in your home. This convenience naturally comes with some risks as it exposes services over the LAN – services which could be targeted for lateral movement given an attacker is able gain a foothold in the local network, for example, by compromising a device via the internet. By default, Home Assistant provides a few core integrations which allow other integrations to implement auto-discovery. We found the following to be the most widely used:
While these integrations present some interesting attack surface, we noted that a much larger attack surface is likely to be available through the actual device integrations which consume these core integrations to implement auto-discovery. In most cases, it’s relatively easy to enumerate which integrations are using these auto-discovery protocols by grepping for import statements. As an example, to find integrations that support auto-discovery using zeroconf, we can grep for
$ grep -r 'import zeroconf' 'homeassistant/components/' homeassistant/components/devolo_home_control/config_flow.py:from homeassistant.components import zeroconf ... homeassistant/components/lutron_caseta/config_flow.py:from homeassistant.components import zeroconf
This can help to narrow down the scope to popular devices where an integration may have a vulnerability in the way a potentially attacker-provided payload is used.
We didn’t end up spending too much time hunting for bugs in the local attack surface exposed via auto-discovery, partly due to the attack surface provided by the web application being just as interesting while also having a higher likelihood of practical exploitability. Furthermore, the web application is still a viable attack surface via the local network anyway – a vulnerability in the web application may allow an attacker with a foothold in the local network to take control over the Home Assistant instance even if it isn’t exposed to the internet. Given our limited time, we hit two birds with one stone by focusing on this for both local and remote attacks, however, we still considered auto-discovery to be an important part of Home Assistant and think it would be a good target for further research.
Remote Attack Surface
From the perspective of a (unauthenticated) remote attacker, the web application running on port 8123 may be the most accessible target when looking to pwn an internet-exposed Home Assistant instance. As we hinted at in the architecture section, it is possible for integrations to add HTTP endpoints and register WebSocket commands. Since both HTTP endpoints and WebSockets can be reached via the web application, each integration that does this slightly increases the attack surface area.
After briefly auditing the component responsible for handling setup and authentication of WebSockets, we found that all communications going through WebSockets require authentication. This meant that there would be no way to send custom commands through the WebSockets API as an unauthenticated user, which largely reduced the pre-auth attack surface. With that said, given the multitude of interesting functionalities provided through WebSocket commands, it could be a fruitful area for future research, especially when privilege separation is properly implemented and more widely used.
There’s not much you can do through the web user interface without getting past the login form, but after a bit of digging, we found that there are a few intentionally unauthenticated endpoints which perform some interesting behaviour. This is made possible thanks to some configurable behaviour when registering HTTP APIs – in a way, it is possible to opt-out of authentication, which yields pre-auth attack surface! We discuss the HTTP integration in more detail below.
Finding Interesting Integrations
Although we understood that integrations were a good place to start looking for bugs, with over a thousand integrations available, it wasn’t possible to go through each one manually. Fortunately, there are a few ways to identify interesting and widely-used integrations. For starters, an integration’s home page shows the number of installations (which have opted in to analytics) it’s being used by. The integrations analytics page is even better as it ranks integrations by the number of Home Assistant instances they are installed on. These statistics could be used to quickly choose which integrations to spend more time on. This list isn’t comprehensive however and seems to lack a few built-in integrations.
There is also the concept of the Integration Quality Scale which assigns integrations a score based on its code quality and user experience. The most interesting to look out for are integrations marked as internal, which are part of Home Assistant itself and most likely to be installed on instances by default. These can be filtered by looking through the
manifest.json files within the
core/homeassistant/components/ subdirectories and filtering appropriately:
$ cat homeassistant/components/*/manifest.json | jq 'select(.quality_scale == "internal") | .name' "Air Quality" "Alarm Control Panel" ... "Zero-configuration networking (zeroconf)" "Zone"
There are around 150 internal quality integrations, including the HTTP integration which we’ve noted to be particularly interesting. The next section discusses this integration in detail.
Case Study: HTTP Integration
A lot of our focus during this research project was on integrations exposing HTTP endpoints on the Home Assistant web application. The HTTP integration makes this all possible and is a very essential part of the application so we spent some time auditing it as well as some other interesting integrations which make use of it.
We weren’t able to find much documentation about how an integration developer can use the HTTP integration to register HTTP endpoints, so the next section aims to give a basic understanding of that process as it will help us to know what to look out for when auditing. We then take a deeper look at authentication and our process for hunting for bugs.
How To Use the HTTP Integration as a Consumer
As code, integrations are Python modules which define a
async_setup function in the
__init__.py file which is called upon initialisation. This function is passed a singleton
HomeAssistant object (
hass) as an argument which gives the integration access to anything it will need to do its job.
The HTTP integration provides a way for other integrations to easily add HTTP APIs to the server while automatically dealing with things such as authentication and CORS. It does this by defining a
HomeAssistantHTTP class which manages the HTTP server for Home Assistant. It gets instantiated and set to the
hass.http attribute when the HTTP integration is setup, making it accessible to any other integration. The web server itself is built on top of aiohttp.
As an integration developer, exposing a HTTP API for your integration is as simple as writing a view class that inherits the base
HomeAssistantView class and calling the
hass.http.register_view method on it. The view class needs to set a few attributes and define some methods to specify what paths and HTTP methods it should handle. The
url attribute specifies the path on the server that the handlers will be routed to. To specify the handler functions, you define class methods whose names corresponds to the HTTP method (e.g.
requires_auth attribute, which is set to
True by default is also configurable to enable or disable the default access token authentication check. This can all be seen in the definition of the
register method, which gets called when
register_view is called.
As a basic, minimal example, we can take a look at the
frontend integration which sets up an unauthenticated HTTP endpoint to return some static data:
async def async_setup(hass: HomeAssistant, config: ConfigType) -> bool: """Set up the serving of the frontend.""" [...] hass.http.register_view(ManifestJSONView()) [...] [...] class ManifestJSONView(HomeAssistantView): """View to return a manifest.json.""" requires_auth = False url = "/manifest.json" name = "manifestjson" @callback def get(self, request: web.Request) -> web.Response: """Return the manifest.json.""" return web.Response( text=MANIFEST_JSON.json, content_type="application/manifest+json" )
The key things to take note of are the following:
- The view class is defined as a subclass of the
- It is passed as an argument to the
hass.http.register_viewmethod within the integration’s setup method
- The view class defines the attributes
- The view class defines the method
getwhich contains the code that is run when this endpoint is requested
With this, we have a relatively simple way of identifying HTTP entrypoints.
As a major goal of our research was to find a pre-auth vulnerability, we naturally decided to audit how authentication is handled in the HTTP integration.
When the HomeAssistantHTTP server is instantiated and initialised, the
async_setup_auth method is called. This method is defined in the
homeassistant/components/http/auth.py file and is responsible for registering middleware that will handle the authentication. We can see in the middleware method
auth_middleware itself how a request is authenticated:
@middleware async def auth_middleware( request: Request, handler: Callable[[Request], Awaitable[StreamResponse]] ) -> StreamResponse: """Authenticate as middleware.""" authenticated = False if hdrs.AUTHORIZATION in request.headers and await async_validate_auth_header( request ): authenticated = True auth_type = "bearer token" # We first start with a string check to avoid parsing query params # for every request. elif ( request.method == "GET" and SIGN_QUERY_PARAM in request.query_string and await async_validate_signed_request(request) ): authenticated = True auth_type = "signed request" if authenticated: _LOGGER.debug( "Authenticated %s for %s using %s", request.remote, request.path, auth_type, ) request[KEY_AUTHENTICATED] = authenticated return await handler(request)
There are two ways to authenticate a request; via a token in the authorisation header, or via a signature in the request query parameters for GET requests. A request is marked as authenticated if the
request["ha_authenticated"] value is
async_validate_auth_header method is simple and defers most of the validation logic to the core auth module implemented within the
homeassistant/auth directory. We briefly audited this module but did not find any significant bugs.
Note that the auth middleware is responsible for setting the
request["ha_authenticated"] attribute, but for authentication to be enforced, this value needs to be used somewhere. For HTTP views registered through the
hass.http.register_view method, this is done within the
def request_handler_factory( view: HomeAssistantView, handler: Callable ) -> Callable[[web.Request], Awaitable[web.StreamResponse]]: """Wrap the handler classes.""" assert asyncio.iscoroutinefunction(handler) or is_callback( handler ), "Handler should be a coroutine or a callback." async def handle(request: web.Request) -> web.StreamResponse: """Handle incoming request.""" if request.app[KEY_HASS].is_stopping: return web.Response(status=HTTPStatus.SERVICE_UNAVAILABLE) authenticated = request.get(KEY_AUTHENTICATED, False) if view.requires_auth and not authenticated: raise HTTPUnauthorized() [...] return handle
If the view’s
requires_auth attribute is
True and the
request["ha_authenticated"] is not, then the handler raises an error. The
requires_auth attribute is set to
True by default in the base
HomeAssistantView class, but can be overwritten to disable automatic authentication checks.
This means that
grep --exclude-dir tests -r 'requires_auth = False' is an easy and reliable grep for identifying potential pre-auth attack surface.
Hunting For Bugs
Although our brief review of the core auth module did not reveal any significant bugs, we did identify a bug in the signed request validation method while looking at the HTTP integration’s auth middleware. The bug would allow an attacker to tamper with a request’s query parameters to reuse a valid signature to authenticate a request under a different set of query parameters. If request signing was used for sensitive endpoints where things like filenames or IDs are used in the query parameters, this could be used to potentially gain unauthorised access to a resource. However, we only found one usage of signed requests being used in the Core integrations, so the impact here was minimal. We reported this to the HA devs and it was promptly patched. We’ve published an advisory for this bug here.
A large part of our focus was on higher level authentication bugs within consumers of the HTTP integration using the opt-out authentication as a starting point. There weren’t many HTTP views which set the
requires_auth attribute to
False, so it was reasonable to look through each one. In most cases, the default authentication check is opted out of because the endpoint is intended to be a static, public resource, or the integration handles authentication in its own way. As a simple example, the Telegram bot integration has a webhook endpoint which disables the default authentication check. It does perform some authentication in its own way though, in this case, based on the requester’s IP address:
class PushBotView(HomeAssistantView): """View for handling webhook calls from Telegram.""" requires_auth = False url = TELEGRAM_WEBHOOK_URL name = "telegram_webhooks" def __init__(self, hass, bot, dispatcher, trusted_networks): """Initialize by storing stuff needed for setting up our webhook endpoint.""" self.hass = hass self.bot = bot self.dispatcher = dispatcher self.trusted_networks = trusted_networks async def post(self, request): """Accept the POST from telegram.""" real_ip = ip_address(request.remote) if not any(real_ip in net for net in self.trusted_networks): _LOGGER.warning("Access denied from %s", real_ip) return self.json_message("Access denied", HTTPStatus.UNAUTHORIZED) try: update_data = await request.json() except ValueError: return self.json_message("Invalid JSON", HTTPStatus.BAD_REQUEST) update = Update.de_json(update_data, self.bot) _LOGGER.debug("Received Update on %s: %s", self.url, update) await self.hass.async_add_executor_job(self.dispatcher.process_update, update) return None
The reason why this is interesting is because it means we have some fresh attack surface to look at. Integrations which perform authentication in their own way might do so poorly, which could lead to an authentication bypass…
When looking through said integrations, we noticed one particularly interesting one: the Home Assistant Supervisor integration. This integration’s purpose is to allow Home Assistant Core (and hence the web application user interface) to interact with the Supervisor. It does this by proxying requests from the user to the Supervisor’s HTTP API. Given the context of the Supervisor’s role within the Home Assistant architecture, we understood this to be a very critical security boundary in which a bug could lead to severe outcomes. Auditing this integration resulted in CVE-2023-27482, a pre-authentication RCE vulnerability which we will talk about shortly.
Incorporating Dynamic Testing
Although code review was the primary driver for the unauthenticated bugs mentioned, dynamic testing played an important part in debugging and identifying further areas that may increase the attack surface. Following the
debugpy documentation, we were able to successfully set breakpoints and follow code in both Core and Supervisor.
When debugging the applications, we then visited the local instance with a HTTP interception proxy and began navigating through the different pages, settings and features. By exploring the application top-to-bottom and interacting with everything we could see, we were then able to sift through the HTTP history to identify interesting API calls, the data being sent through WebSockets and gain a clearer understanding of some of the data structures that may be passing through the code.
Thinking about common web vulnerability classes, we looked for key functionality that is often prone to bugs such as configuration saving, linking external services, uploading files, parsing of files or data (such as XML), and of course database lookups. When an interesting API request was identified, we then identify the code responsible for handling the request.
For example, a POST request to the path
/api/media_source/local_source/upload can be located in the code base by grepping for
$ grep -ir 'media_source/local_source' --exclude-dir tests/ core/homeassistant/components/media_source/local_source.py: url = "/api/media_source/local_source/upload" core/homeassistant/components/media_source/local_source.py: vol.Required("type"): "media_source/local_source/remove", frontend/src/data/media_source.ts: "/api/media_source/local_source/upload", frontend/src/data/media_source.ts: type: "media_source/local_source/remove",
We can see that the functionality is handled in
core/homeassistant/components/media_source/local_source.py inside the
UploadMediaView function. By setting a breakpoint on the
post function, we were then able to step through and even re-run some of the method calls with different inputs to see if they may be vulnerable, such as the
MediaSourceItem.from_uri(self.hass, data["media_content_id"], None) call to determine the parsed
media_content_id URI. From our time following this approach, we identified a path traversal vulnerability in the
media_source upload functionality which we’ve published an advisory for here.
CVE-2023-27482: Authentication Bypass in Home Assistant
The most significant vulnerability from our time researching Home Assistant was a critical authentication bypass, tracked as CVE-2023-27482. elttam’s full advisory detailing the vulnerabilities and Proof-of-Concept can be found here.
The finding resided in the Supervisor integration which allowed for a remote unauthenticated attacker to achieve Remote Code Execution (RCE) on the target Home Assistant instance, and consequently, full access to control all smart home devices, stored data and credentials, and also internal access to the home network.
Reporting the initial vulnerability was relatively straight forward. However, the patching process wasn’t overly smooth and could be improved in future for both the remediation workflow and security advisory details to help ensure users are provided adequate information to understand the severity and applicability of a given vulnerability.
Initially, various minor fixes were made to the code base and merged into regular commits between versions, on top of this, the disclosure by Home Assistant was published over a week after two versions had been pushed to the repository with very little information suggesting the commits had anything to do with a security vulnerability. We discovered various workarounds to the mitigations that were put in place which included techniques such as inserting tabs or other special characters into the URL that were ignored by the handler. Home Assistant developers were quick to push out further fixes to the workarounds, however no further updates to the advisory were made and the fixes were once again merged quietly into day-to-day commits and version releases.
A few days before we commenced the blog, we also identified another entry point within the
/api/hassio_ingress endpoint on the Supervisor integration, although the Home Assistant Core fixes introduced in 2023.3.2 prevented the exploitation of the issue, the universal updates released in the Supervisor code base aimed at protecting older versions of core were not sufficient and exposed the platform once again. It wasn’t until Home Assistant Core version 2023.3.2 and Supervisor 2023.03.3 that our workarounds were no longer exploitable despite the advisories still referencing versions 2023.3.0 (core) and 2023.03.1 (Supervisor).
Further to this, the Home Assistant forums and sites such as ycombinator and reddit were home to many  comments  showing that the potential full impact of the vulnerability was not clear. This vulnerability also affected Home Assistant Cloud, a partner service offered by Nabu Casa, which was not explicitly mentioned in the announcement – some  comments  indicated that users were unsure if they were affected or not. Fortunately, this did spark some useful discussions regarding assumptions about the (lack of) security provided by random hostnames and even potential risks involved when using the Nabu Casa service.
Ultimately, the vulnerability is exploitable as long as the Home Assistant instance runs the Supervisor component with the Supervisor integration and is reachable via the internet or through local network access – random hostnames or TLS do not provide any form of protection in this case. The simplest way to avoid being at risk from a remote attacker is to not expose the instance to the internet. We encourage users to consider VPN services like Tailscale which make remote access simple and secure.
A timeline of the disclosure process was as follows:
- 17/02/2023 - We begin researching the Home Assistant Supervisor Integration and discover the vulnerability
- 20/02/2023 - Vulnerability report sent to firstname.lastname@example.org
- 27/02/2023 - Follow up email sent to confirm receipt of report
- 28/02/2023 - Confirmation of receipt from Home Assistant
- 01/03/2023 - Home Assistant replies detailing plans to release hardening fixes, request a CVE and publish a blog post
- 01/03/2023 - CVE-2023-27482 reserved
- 01/03/2023 - Home Assistant 2023.3.0 is released, containing hardening in the HTTP integration security filters middleware
- 08/03/2023 - Home Assistant Supervisor 2023.03.1 is released, containing hardening in the security middleware
- 09/03/2023 - Home Assistant 2023.3.2 is released, containing further fixes in the Supervisor integration
- 09/03/2023 - Home Assistant publishes blog post and advisory
- 21/03/2023 - Bypass affecting Home Assistant Core <=2023.3.1 discovered and reported to vendor
- 21/03/2023 - Confirmation of receipt from Home Assistant
- 22/03/2023 - Home Assistant Supervisor 2023.03.2 is released, containing mitigation against the bypass
- 26/03/2023 - Bypass affecting Home Assistant Core <=2023.3.1 and Supervisor <=2023.03.2 discovered
- 27/03/2023 - Bypass reported to vendor
- 28/03/2023 - Confirmation of receipt from Home Assistant
- 29/03/2023 - Home Assistant Supervisor 2023.03.3 is released, containing mitigation against the bypass
- 03/05/2023 - Draft blog post shared with Home Assistant
- 04/05/2023 - Feedback on blog post received from Home Assistant
- 04/05/2023 - Advisory updated to reflect correct versions
- 10/05/2023 - Public release of elttam advisories and blog post
This post covered our team’s journey on hacking away at Home Assistant. We hope that we were able to provide some insights about how we approached finding high severity vulnerabilities in a large project through mostly manual code review guided by an analysis of the attack surface. We were only able to cover so much ground in the time we had and there are a lot of interesting features and attack surfaces we might not have thought about. We would love to see further security research into Home Assistant especially as the project and smart homes in general continue to grow in popularity.
Our advisories for the vulnerabilities we reported to Home Assistant during this research project can be found here.
Thanks for reading!
